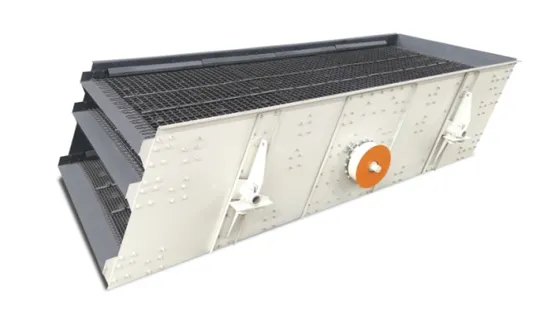

Fine Screening Rotary Vibrating Screen/Linear Vibrating Screen
Overview Factory Price Fine Screening Rotary Vibrating Screen/Linear Vibrating Screen Product Description We are engaged
Send your inquiryDESCRIPTION
OverviewBasic Info.
Model NO. | TS |
Shaft Number | Single |
Running Track | Circular Vibrating Screen |
Supporting Device | Coil Spring |
Warranty | 1 Year |
Customized | Customized |
Condition | New |
After-sales Service | Online Video Guidance |
Transport Package | Wooden Box |
Specification | customized |
Trademark | TFZD |
Origin | Xinxiang, Henan |
HS Code | 8474100000 |
Production Capacity | 2000pieces/Year |
Product Description
Factory Price Fine Screening Rotary Vibrating Screen/Linear Vibrating ScreenProduct Description
We are engaged in manufacturing screening machine that is extensively used for separation of solids and gradation of material in accordance with their sizes. The vibrating screen are designed for screening the dry material through any mesh size as per particles size.
Manufactured also in double/triple/four decks for multiple grading sizes in the same batch in the same process.Product Advantage1. Easily change screen cloth as needed2. Automatic discharge of oversized material3. Can be applied for screening particle, powder, liquid in various industries4. All- closed design, no dust pollution5. Sort material into multi-levels at one operation6. Low noise, less than 60 decibels
Detailed PhotosProduct Parameters
Mechanical model | Power Kw | Screen diameter mm | Dimensions mm | Number of network layers | Effective diameter φ | Effective area m2 |
TS-300 | 012 | 190 | 300x315x550 | 5 | 170 | 0.0227 |
TS-450 | 0.37 | 450 | 510x510x680 | 1 | 420 | 0.1385 |
1FTS-500-2F 3F | 0.55 | 460 | 665x665x635665x665x740665x665x845 | 123 | 430 | 0.1452 |
1FTS-600-2F 3F | 0.55 | 560 | 760x760x635760x760x740760x760x845 | 123 | 530 | 0.2206 |
1FTS-800-2F 3F | 0.75 | 760 | 1000x1000x7701000x1000x9101000x1000x1050 | 123 | 730 | 0.4185 |
1FTS-1000-2F 3F | 1.5 | 930 | 1200x1200x8901200x1200x10301200x1200x1170 | 123 | 900 | 0.5945 |
1FTS-1200-2F 3F | 1.85 | 1130 | 1528x1528x9451528x1528x10051528x1528x1165 | 123 | 1100 | 0.8992 |
1FTS-1500-2F 3F | 2.2 | 1430 | 1758x1758x11201758x1758x13101758x1758x1500 | 123 | 1400 | 1.4741 |
1FTS-1800-2F 3F | 3.0 | 1730 | 2137x2137x12652137x2137x14552137x2137x1645 | 123 | 1700 | 2.2698 |
1FTS-2000-2F 3F | 3.7 | 1930 | 2337x2337x12652337x2337x14552337x2337x1645 | 123 | 1900 | 2.8652 |
1. Once the machine on operation, vibration part shall not be connected or contact with any object.2. When feeding materials, pay attention to ensure the uniform feeding.3. When the material through down, keeping no big impact to damage the screen.4. Before operation and power off, there should no be any material on screen surface.5. If there is any abnormal sound in the operation, the machine should be shutdown immediately and to check.6. Ensure vibration motor maintenance regularly.
